VUE 5MP Turret Model | VUE Video Camera Installation & User Guide

Note: Ensure the video camera has been activated on Dealer Admin before using Virtual Keypad. For more information, refer to Dealer and Installer Guide.

The camera includes the following features:

5MP resolution
Person and vehicle analytics
Red and blue/white deterrence lighting
Built-in microphone
Built-in speaker

To use the VUE Turret camera, complete the steps below:

Configure Camera Settings

Note: For best user experience, when viewing video on the 8860 7-inch Touchscreen Keypad, use the Medium setting for the Video Quality.

Log in to the Virtual Keypad app and enter your User Code.
Select the (Video) icon, then select the VUE camera you want to configure settings for.
Select the (Settings) icon at the top of the screen.
Select the camera name to rename it.

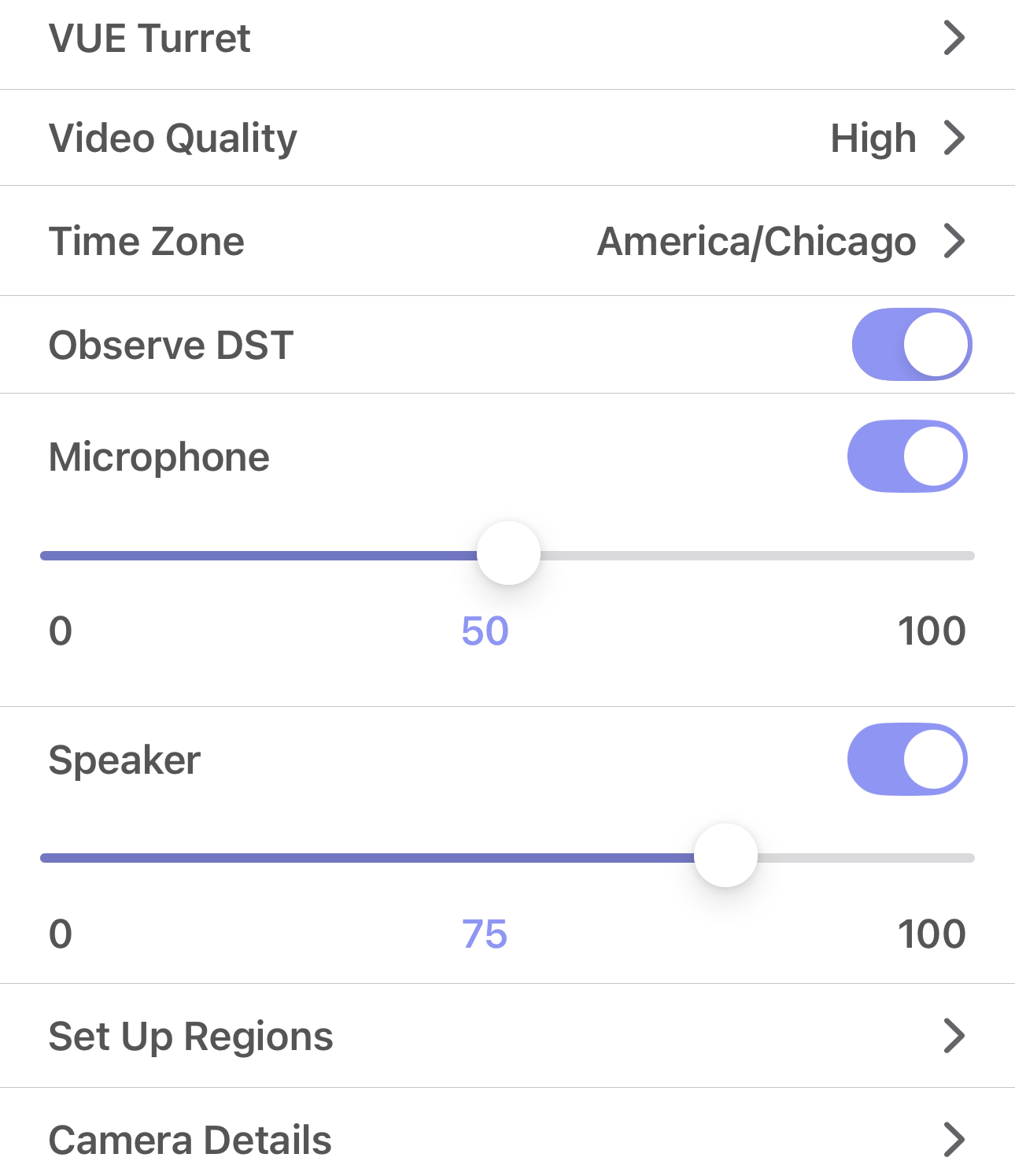

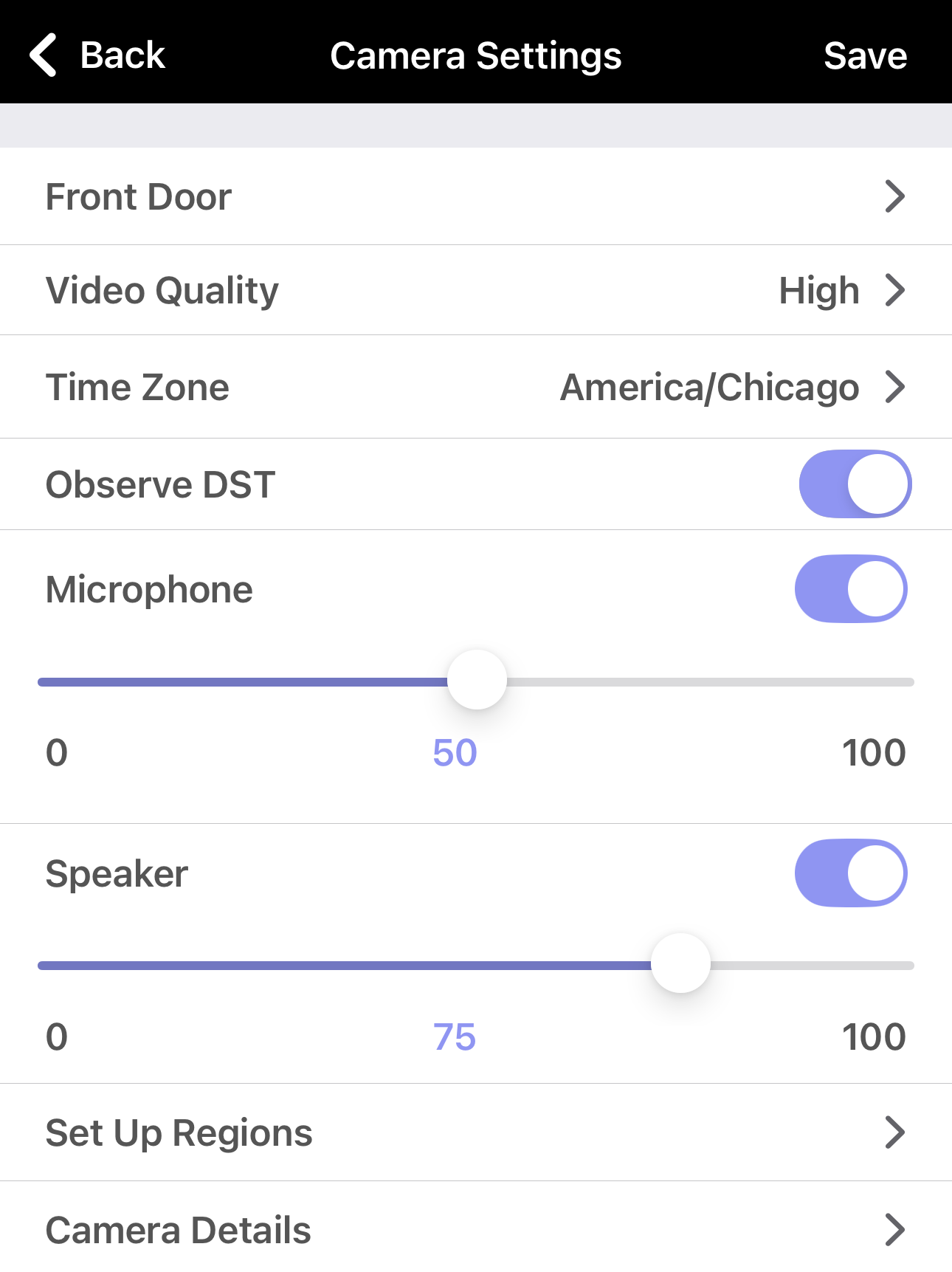

Configure the following settings:
- In Video Quality, select >, then select Low, Medium, or High to determine the video quality.
- In Time Zone, select >, then select the appropriate time zone.
- Observe DST is toggled ON by default. Toggle OFF if you do not want to observe Daylight Saving Time.
- Microphone is toggled ON by default. Toggle OFF to disable the microphone.
- Use the slider to adjust the microphone volume level.
- Speaker is toggled ON by default. Toggle OFF to disable the speaker.
- Use the slider to adjust the speaker volume level.

Note: If Video Analytics is not enabled, motion sensitivity is configured in Camera Settings instead of per individual region.

Complete one of the following options:
- Complete the steps below to create a region or line.
- Select Save at the top of the screen.

Set Up Regions

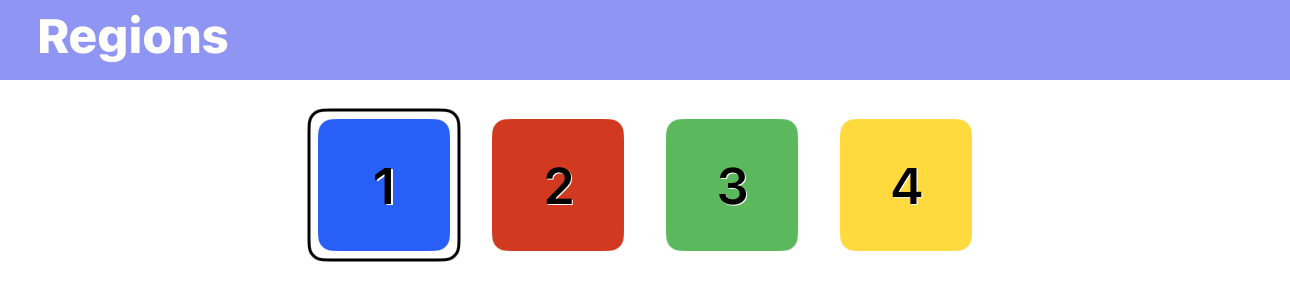

You can create up to 4 detection regions per camera and a total of 8 regions and lines per camera. Each region is identified by the following colors:

Region #1 — Blue
Region #2 — Red
Region #3 — Green
Region #4 — Yellow

Log in to the Virtual Keypad app and enter your User Code.
Select the (Video) icon, then select the VUE camera you want to configure settings for.
Select the (Settings) icon at the top of the screen.
Select Set Up Regions, then select the icon. A blue box appears in the middle of the camera view screen.
Select the box, then drag it across the camera view to place it in the desired location. Select and move the white circles on the corners of the box to manipulate the region.

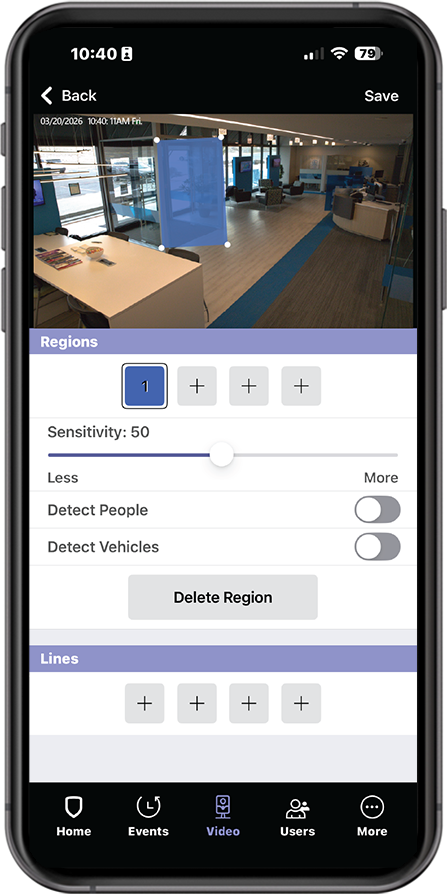

Configure the following region settings:

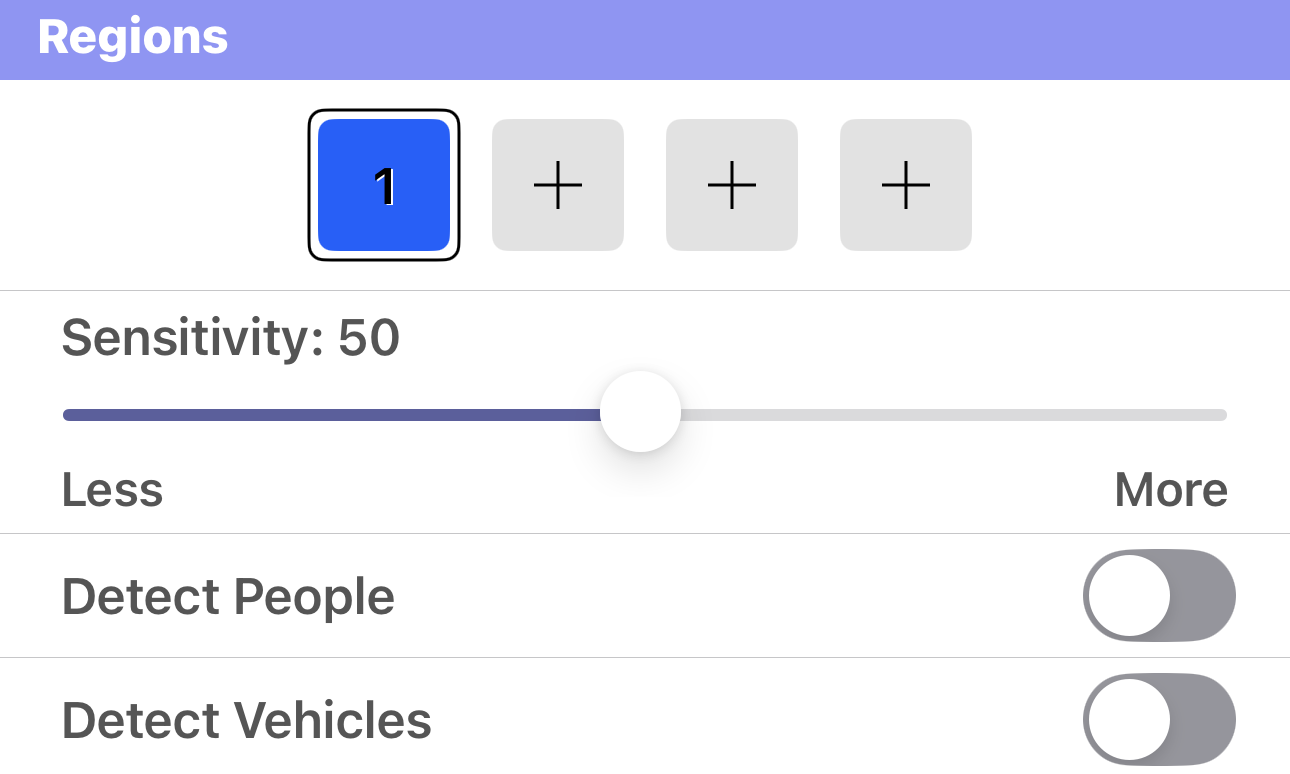

- In Sensitivity, use the slider to adjust how sensitive motion detection is for the selected region.
- Toggle Detect People, Detect Vehicles, or both ON to enable the camera to detect those objects.

Complete one of the following options:
- Select the icon, then repeat the steps above to create another region.
- Complete the steps below to create a detection line.
- Select Save at the top of the screen.

Set Up Lines

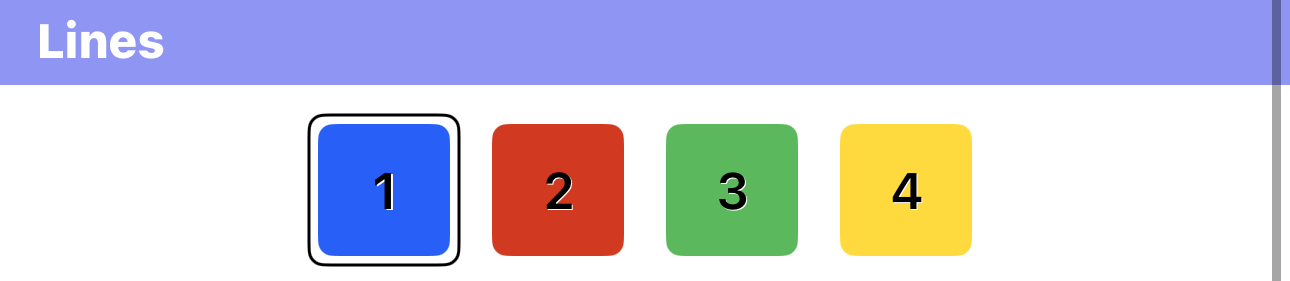

You can create up to 4 detection lines per camera and a total of 8 lines and regions per camera. Each line is identified by the following colors:

Region #1 — Blue
Region #2 — Red
Region #3 — Green
Region #4 — Yellow

Log in to the Virtual Keypad app and enter your User Code.
Select the (Video) icon, then select the VUE camera you want to configure settings for.
Select the (Settings) icon at the top of the screen.
Select Set Up Regions, then select the icon. A line appears in the middle of the camera view screen.
Select the line, then drag it across the camera view to place it in the desired location. Select and move the white circles on the ends of the line to manipulate it.

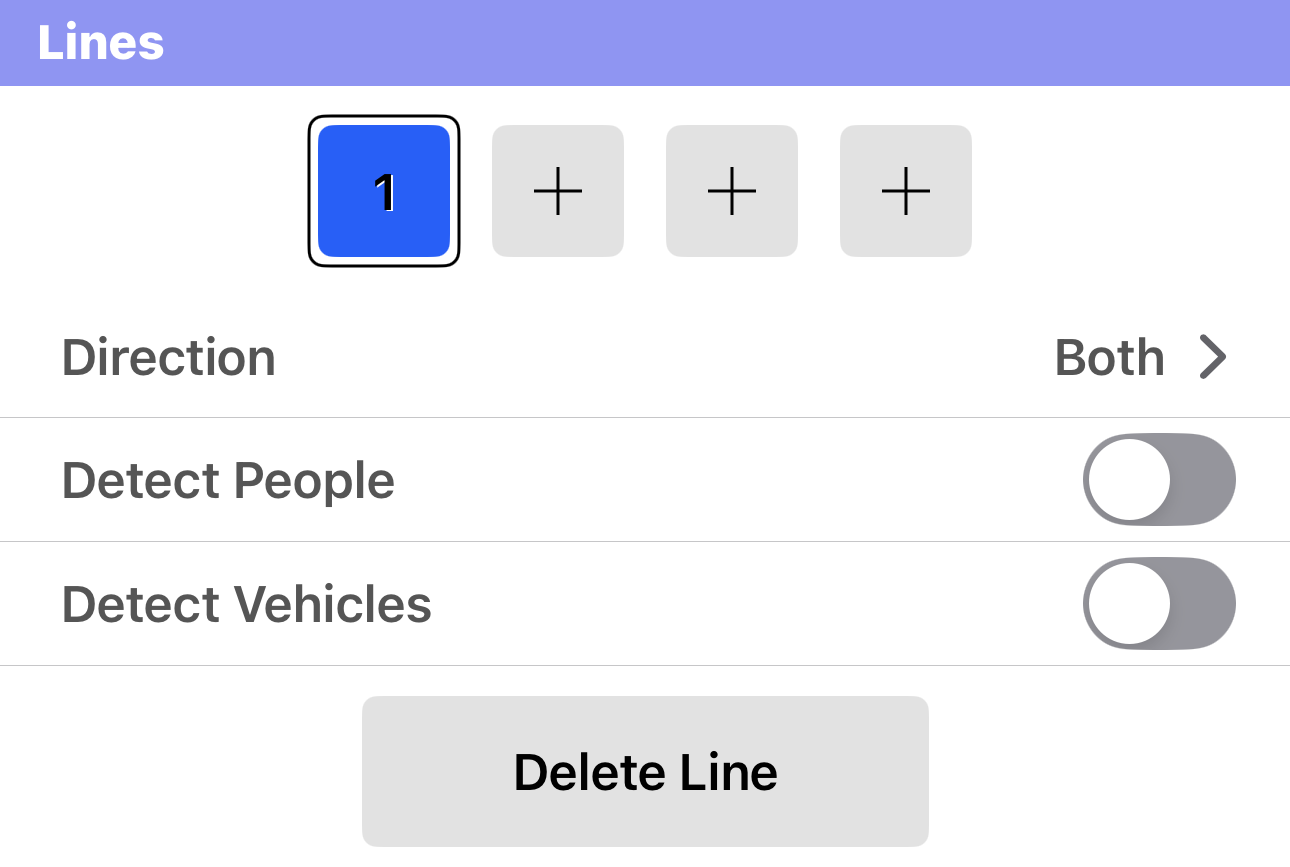

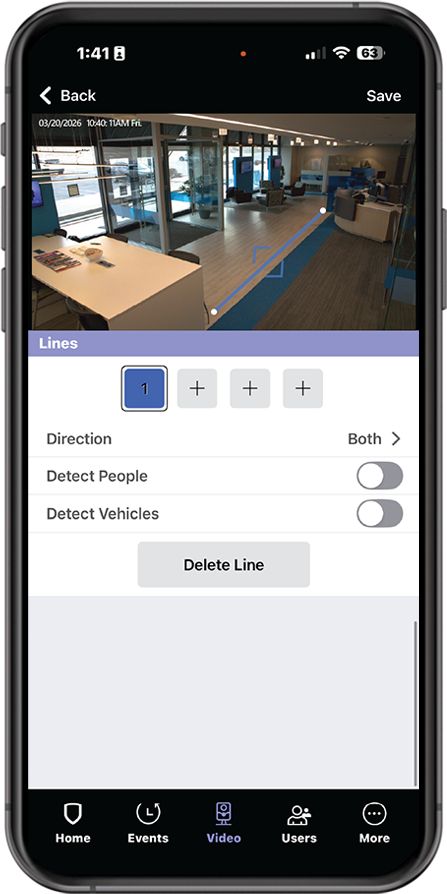

Configure the following line settings:
- In Direction, select one of the following directions to monitor if a person or vehicle moves in a direction that crosses the detection line:
  - Enter—Motion has to cross the line in the direction of the arrow.
  - Exit—Motion has to cross the line in the direction of the arrow.
  - Both—Motion can cross the line in either direction.
- Toggle Detect People, Detect Vehicles, or both ON to enable the camera to detect those objects.

Complete one of the following options:
- Select the icon, then repeat the steps above to create another line.
- Select Save at the top of the screen.

View Camera Live Feed

Log in to the Virtual Keypad app and enter your User Code.
Select the (Video) icon, then select the VUE camera you want to view.

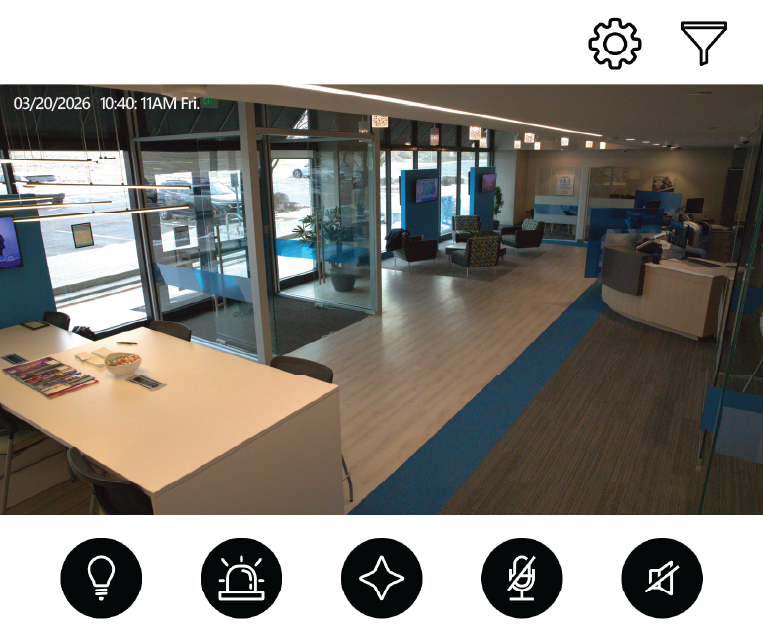

The camera’s live view appears with the date and time visible in the top-left corner.

Refer to the information below to complete the following actions:

Note: Some options may not appear if they are disabled in camera settings. Refer to Configure Camera Settings for more information.

Turn On/Turn Off White Light

Select the icon to turn on the white light.

Select the white light turn off icon.png icon to turn off the white light.

Turn On/Turn Off Red and Blue Lights

Select the icon to turn on the flashing red and blue lights.

Select the redblue light turn off icon.png icon to turn off the flashing red and blue lights.

Turn On/Turn Off Sprites

Select the icon to add or view sprites. Tap and hold anywhere on the camera view to add a sprite.

Select the turn off sprites icon.png icon to hide sprites.

Refer to Sprites for more information.

Mute/Unmute Mic

Select the icon to unmute the microphone.

Select the mic turn off icon.png icon to mute the microphone.

Mute/Unmute Speaker

Select the icon to unmute the speaker.

Select the speaker turn off icon.png icon to mute the speaker.

View Video Events

Log in to the Virtual Keypad app and enter your User Code.
Complete one of the following actions:
- Select the (Events) icon to view video events for all video devices.
- To view events for a specific VUE camera, select the (Video) icon, then select your VUE camera.

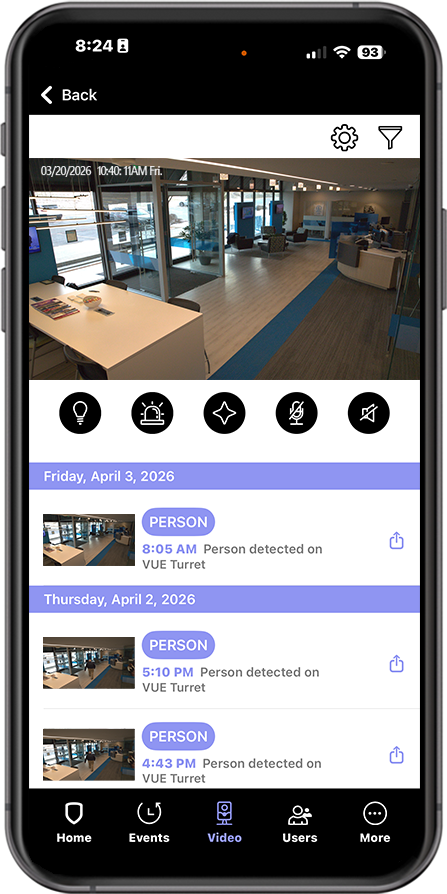

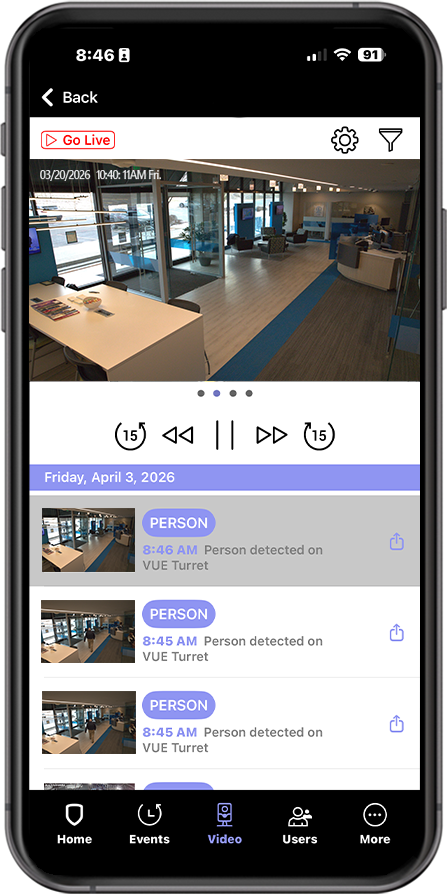

A list of motion or analytic detection events display, including the date, time, and recorded clip. Select an event to view the recorded clip. You can also select the icon to download the clip to your device.

Select Go Live in the top-left corner to return to live view.

camera view and events w phone edited.png

camera view and events w phone (event selected).png

Refer to the table below for more information about motion and analytics events.

Event Type	Description
Motion Detection Events	These are recorded when a region is configured in camera settings but video analytics (person or vehicle) are not assigned to that region. Every time motion is detected, the clip is recorded and stored in Events on Virtual Keypad.
Analytic Detection Events (Person or Vehicle)	These are recorded when a region or line is configured, and video analytics are assigned in camera settings. For example, when a region is configured to detect vehicles. Every time a person or vehicle is detected within the defined region or crosses the defined line, the clip is recorded and displays in Events on Virtual Keypad.

Event Type

Description

Motion Detection Events

These are recorded when a region is configured in camera settings but video analytics (person or vehicle) are not assigned to that region.

Every time motion is detected, the clip is recorded and stored in Events on Virtual Keypad.

Analytic Detection Events (Person or Vehicle)

These are recorded when a region or line is configured, and video analytics are assigned in camera settings. For example, when a region is configured to detect vehicles.

Every time a person or vehicle is detected within the defined region or crosses the defined line, the clip is recorded and displays in Events on Virtual Keypad.
